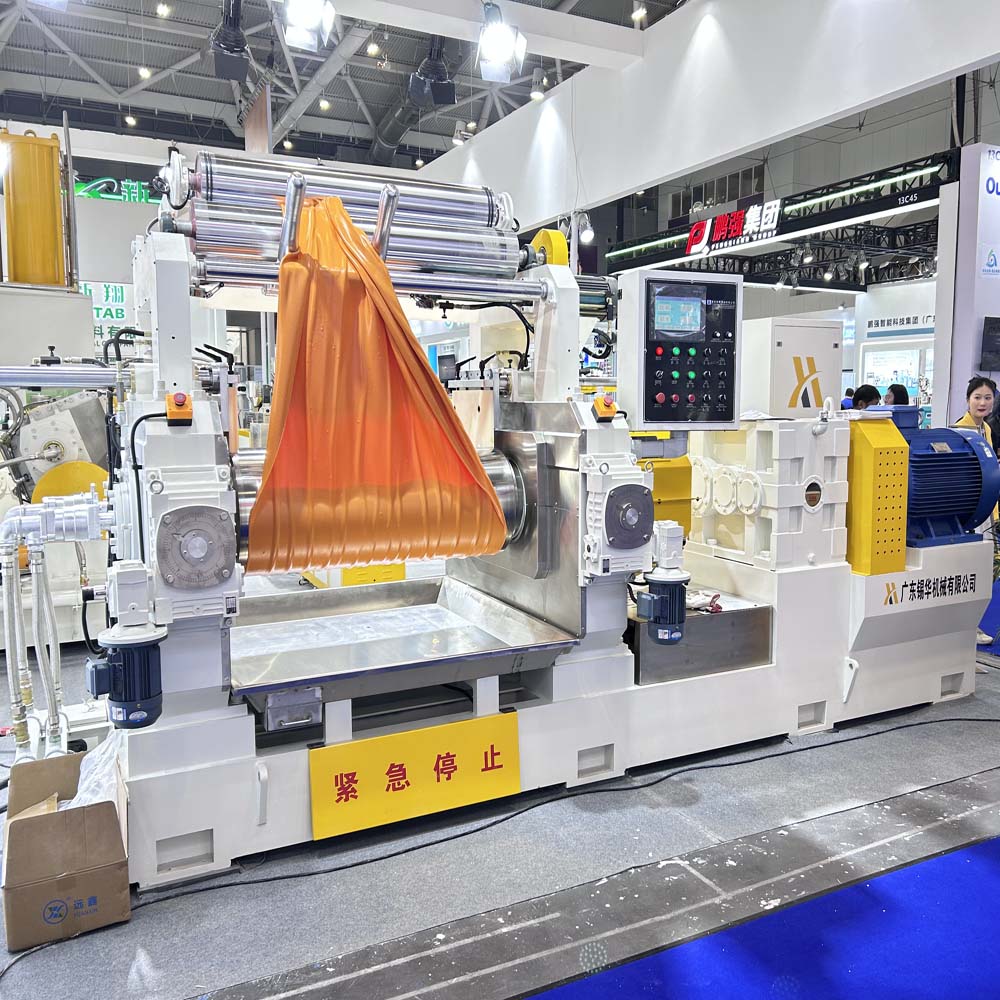

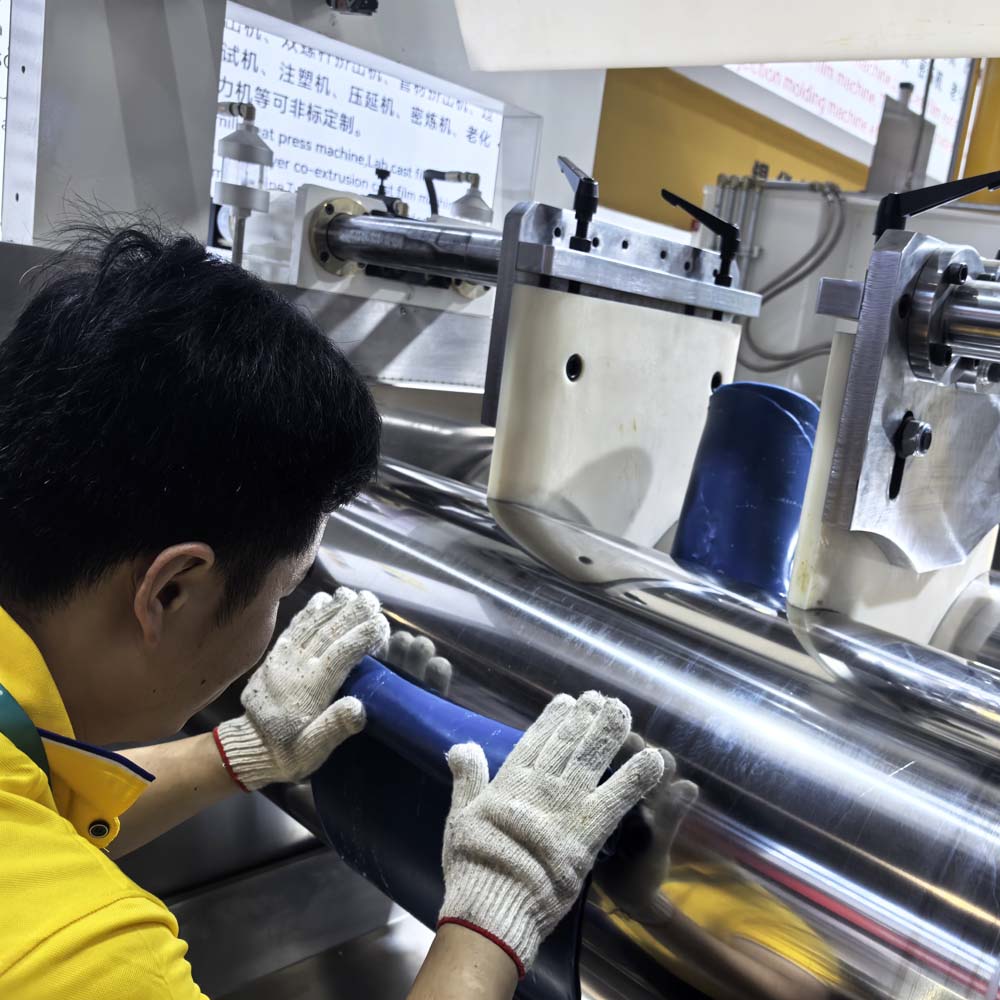

16寸 開放式煉膠機

輥筒直徑/長度 Roller Diameter/Length

Φ400×1000mm

輥筒材質Roller material

冷硬合金鑄鐵 Cold hard alloy cast iron

輥筒表面處理 Roller surface treatment

表面硬化層深度達 10~15mm
Surface hardening layer depth up to 10~15mm

輥筒表面硬度 Roller surface hardness

HS72~75

輥筒間距調節 Roller Pitch Adjustment

0~15mm    Motorized

輥筒速比 Roller speed ratio

1:1.27   速比可定制 Ratio can be customized

輥筒轉速 Roller speed

前輥線速度：20.65M/min     前輥轉速：16.43r/min
Linear speed of front roller：20.65M/min Speed of front roller：16.43r/min

控溫方式 Temperature control mode

外接循環水  External circulating water

冷卻水壓力 Cooling water pressure

0.2-0.4Mpa

主電機 Main motor

45KW

減速機 Reduction gears

硬齒面  Hard tooth surface

傳動方式 Transmission method

單出軸，右傳動 Single outlet shaft, right-hand drive

翻膠裝置 Glue turning device

自動翻膠 選配  Automatic Rubber Turnover

潤滑系統 Lubrication system

循環稀油潤滑 選配  Circulating thin oil lubrication

安全裝置 Safety device

快速氣動碟剎制動  兩邊各兩個急停開關，總共4個
拍擊式和腳踢式  Rapid pneumatic disc brake Two emergency stop switches on each side, 4 in total  Tapping and kicking type

擋料板 Blocking plate

進口MC 含尼龍  Imported MC with nylon

功率 Total Power

45KW

電源 Power Supply

3∮，AC380V

重量 Weight (ton)

8000kg

體積約(W×D×H)  Dimension

4500×1850×1760mm>
